Schuco AW 40.NI

Schüco AW 40.NI is a non-insulated aluminum window system designed for durable, cost-effective solutions in warm climates and interior applications.

A Perfect Blend of Durability and Design

The Schüco TropTec™ AW 40.NI is a non-insulated outward-opening aluminum window system, designed with architectural flexibility, durability, and performance in warm (tropical) climates. It has a profile depth of 40 mm and is made to meet high standards of weather-tightness, safety, and ease of fabrication.

Glass Thickness: 4mm to 26mm

Max Width (W): 1000mm

Max Height (H): 2400mm

Handle Options: Cockspur & Lever handle

Locking System: Single Point Locking & Modular

Key Features

Experience the Key Benefits.

Discover the unique advantages designed to enhance durability and performance.Every feature reflects a balance of strength, style, and reliability.Built with precision to meet modern architectural needs.These key features ensure long-lasting value and comfort.

Multiple opening types

Side-hung, projected side-hung, projected top-hung, and double-vent windows.

Face width / profile dimensions

Basic profile depth 40 mm, narrow face width (approx. 74 mm for side-hung, etc.) to give slim, elegant sightlines.

Size capability

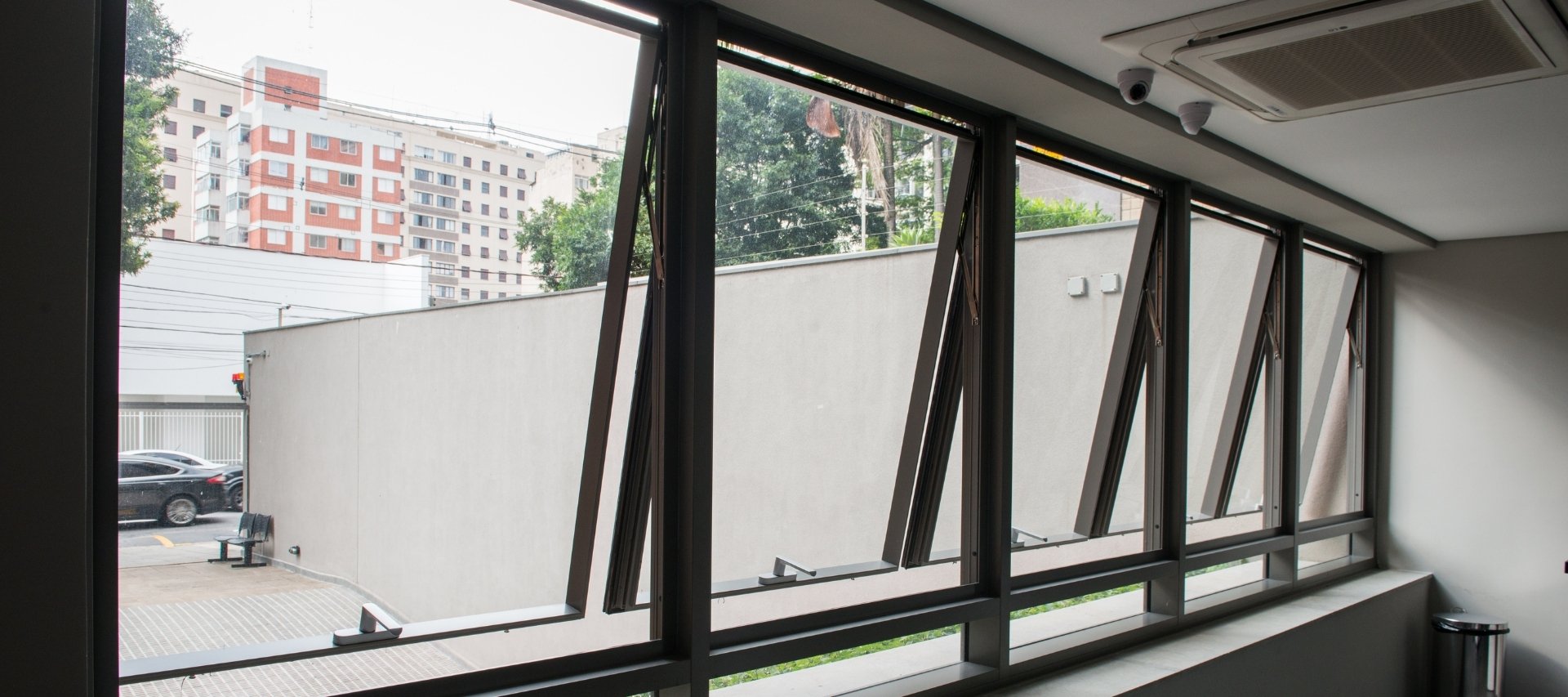

Max vent heights up to ~1800 mm for projected top-hung, ~2400 mm for side-hung; vent widths in certain opening types up to ~1500 mm.

High performance in weather tests

Air permeability: ~ 600 Pa
Water tightness: up to 600 Pa (class 9A)
Wind load resistance: up to ~ 2500 Pa for certain profiles / vent types

German Precision

Engineered with Schüco’s trusted craftsmanship and long-lasting durability.

Integrated options

Includes features like integrated fly mesh and grill, night-ventilation (allowing some ventilation while maintaining security), optional accessories, and possible integration into bay windows.
